CAJ2446ZBR CAJ2446Z Refrigeration Compressor Condensing Unit R404a 1hp
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Showroom Location | None |
|---|---|---|---|
| Brand Name | Famous | After Warranty Service | Online Support |
| After-sales Service Provided | Online Support | Application | Refrigeration Parts |
| Color | Black | Model | CAJ2446Z |
| Condenser | Air Cooled Condenser Made | Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Type | Condensing Unit | Place Of Origin | Shanghai, China |
| Warranty | 1 Year | Local Service Location | None |
| Product Name | Air Cooled Condensing Unit | Refrigerant | R404a |
| Compressor | Tecumseh Compressor | Voltage | 220V/1Ph/50Hz |
| Horse Power | 1HP | Cooling Type | Air |
| Highlight | Compressor Condensing Unit R404a,Refrigeration Compressor Condensing Unit,1hp Compressor Cooler Condensing Unit |
||
Product Description

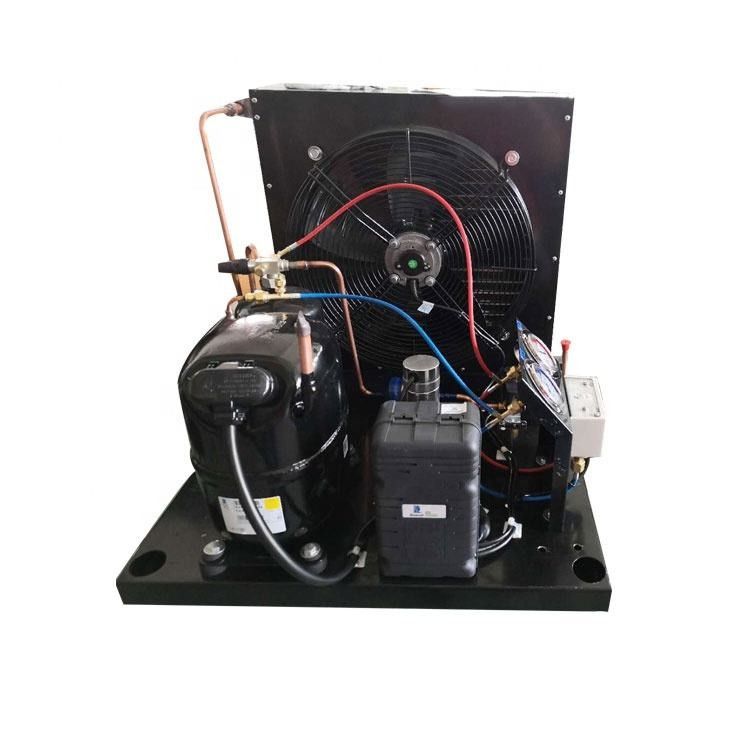

CAJ2446ZBR CAJ2446Z Tecumseh compressor r404a 1hp small condensing unit
Europe Tecumseh fully enclosed air-cooled condensing unit performance table
| Model | HP | OUT TEMP℃ | Cooling capacity(W) | PIPER | ||||||||
| Evaporation temperature ℃ | ||||||||||||
| -20 | -15 | -10 | -5 | 0 | 7.2 | 10 | 15 | Suction | Liquid | |||
| CAJ2446ZBR | 1 | 32 | 180 | 360 | 547 | 750 | 1047 | 1205 | 1456 | 1724 | 12.7 1/2 | 9.5 3/8 |
| CAJ/TAJ2446ZBR | 1 1/2 | 32 | 128 | 459 | 771 | 1080 | 1491 | 1692 | 1995 | 2296 | 15.9 5/8 | 9.5 3/8 |
| TFH2480ZBR | 2 | 32 | 435 | 852 | 1233 | 1628 | 2223 | 2519 | 2980 | 3147 | 15.9 5/8 | 9.5 3/8 |
| TFH2511ZBR | 3 | 32 | 395 | 992 | 1520 | 2105 | 2892 | 3301 | 3895 | 4485 | 15.9 5/8 | 9.5 3/8 |
| TAG2516ZBR | 4 | 32 | 941 | 1631 | 2354 | 3146 | 4317 | 4940 | 5941 | 7011 | 22.2 7/8 | 9.5 3/8 |
| TAG2522ZBR | 6 | 32 | 1307 | 2146 | 3020 | 3971 | 5368 | 6107 | 7291 | 8553 | 28.6 1 1/8 | 9.5 3/8 |
| Model | Europe Tecumseh Condensing unit assembly size and electrical performance table | ||||||||
| amount of oil cm³ | Air volume m³/h | Reservoir dm³ | (V) | NW Kg | Working | Maximum | Input | ||
| current | current | power | |||||||
| 1Ph | 3Ph | A | A | W | |||||
| CAJ2446ZBR | 887 | 1130 | 2.35 | 220 | 39 | 4.35 | 8.73 | 833 | |
| CAJ/TAJ2446ZBR | 887 | 980 | 2.35 | 220 | 380 | 40 | 6.18 | 11.2 | 1198 |
| TFH2480ZBR | 1625 | 2200 | 3.9 | 380 | 60 | 2.79 | 4.33 | 1639 | |
| TFH2511ZBR | 1625 | 2250 | 3.9 | 380 | 60 | 3.64 | 5.43 | 2031 | |
| TAG2516ZBR | 1960 | 4800 | 6 | 380 | 106 | 5.18 | 10.7 | 3151 | |
| TAG2522ZBR | 1960 | 4800 | 6 | 380 | 110 | 6.09 | 14.9 | 3799 | |
| Model | Europe Tecumseh Condensing unit assembly size and electrical performance table | ||||||||
| Dimensions | GAS | Cylinder displacement cm³ | picture | ||||||
| A | B | C | D | E | F | ||||
| mm | mm | mm | mm | mm | mm | ||||
| CAJ2446ZBR | 310 | 485 | 340 | 430 | 310 | 385 | R404A | 26.15 | 5 |
| CAJ/TAJ2446ZBR | 310 | 490 | 340 | 430 | 310 | 385 | R404A | 34.45 | 5 |
| TFH2480ZBR | 415 | 630 | 450 | 510 | 430 | 190 | R404A | 53.2 | 8 |
| TFH2511ZBR | 415 | 630 | 450 | 510 | 430 | 190 | R404A | 74.25 | 8 |
| TAG2516ZBR | 452 | 618 | 469 | 1002 | 405 | 854 | R404A | 112.5 | 11 |
| TAG2522ZBR | 464 | 642 | 469 | 1002 | 405 | 854 | R404A | 134.8 | 11 |
Our wide range of condensing units is backed by 75+ years of experience. From small evaporative condensate units to large outdoor condensing units, you'll find the right product from Tecumseh.
Why Tecumseh Condensing Unit?
Ready to install - Tecumseh continues to pioneer the design and development of condensing units for various applications. We offer a complete range of air and water-cooled, indoor and outdoor condensing units for commercial refrigeration applications.
The fully enclosed condensing unit is suitable for various working fluids such as R22, R134a and R404A. The cooling capacity of the unit is from 100W to 30000W, the evaporating temperature is -45°C to +15°C, and the high, medium and low temperature series are complete. At present, the number of units that have been produced has reached more than 2,000. It is the first choice for refrigeration in various industries such as supermarkets, dairy, kitchens, cold storage, fire protection, gas purification, medical treatment and environmental experiments.
The company is willing to meet the needs of customers with the best quality, the shortest delivery time, the most perfect and fast service!
Product Description:
Tesumseh condensing unit is with original Tecumseh hermetic compressor. With advantage of small capacity, Tecumseh condensing unit is the first choice for small cold room. Like 1/8HP, 1/6HP, 1/5HP, 1/4HP, etc. Applicable for med-high temperature and med-low temperature. Widely used in different field, like supermarket, food industry, chemical industry, hotel, restaurant, and even medical service, etc.
Feature:
1. Tecumseh hermetic compressor
2. With full range, air cooled & water cooled.
3. All the accessories are world famous brand, which with reliable quality.
4. Wide application, suitable for different refrigerant.
5. Optional configuration is acceptable.
Package details and loading show:
packed with woode case;package size:0.55*0.41*0.45m;gross weight:41KG.
